Description
Formation of water scale
The formation of water scale usually starts from tiny crystals’ formation. Crystals precipitates from supersaturated solutions has two links: crystal nucleus formation and crystal lattice growth.
And each link is divided into three growth periods: initial stage, medium stage and terminal stage.
That is to say, after these three growth periods, the crystal nucleus can gradually form the crystal lattice .
The growth of the crystal lattice is a slow process, only in certain activated regions of the crystal nucleus, the crystal crystal lattice can grow by adsorbing precipitated ions. And after three growth periods, crystals lattice gradually form a crystals, it is called water scale.
Product features
·Superior Anti-scaling ability
20 grams anti-scaling particles can process hardness 200-600 high-scale water for more than 3-10 tons. The Anti-scaling effect reaches 90%.
·Permanence and stability
Micron granulation technology and multi-layer molding method to prepare controllable and slow-release anti-scaling particles, realized true release controllability, and maintain good water resistance and impact resistance.
·High temperature resistance
The product has a stable anti-scaling effect even in a high temperature environment.
·High PH Value
The product has a stable effect in a high PH environment
·Neutral Eco-Friendly Material
The product uses biologically active materials, the aqueous solution is neutral, which is more safe and Eco-Friendly.
·Low solubility and slow release
While achieving high-efficiency anti-scaling effect, the product only dissolves out a small amount of anti-scaling active factors, and the anti-scaling time is long.
Principle of Scale Inhibition
At the the germination period of water scale growth(the initial stage of scale crystal nucleus), the active ingredients of the Anti-scaling particles directly participate in and interfere with crystal nucleus’ formation process by the form of ions. Making the crystal nucleus distorted, and died in the development stage, thereby inhibiting the formation of scale crystals at the source.
Product test
The water is heated without filtering material
Water scaling phenomenon is obvious, floating matter increases obviously and the bottom is accompanied by sediment.
The water is heated after filtering.
Water doesn’t appear fouling phenomenon and floating matter.
There is also no precipitate at the bottom.
Performance data
The test data is detected by the test prototype.
Test prototype configuration: PP Cotton filter + activated carbon filter+ anti-scaling filter (add 40g anti-scaling material into the granular carbon) +Ultra filtration filter
sample point
flows （L/min）
water pressure
Hardness
Scaling phenomenon
Scaling phenomenon
0L
2.4
0.26 Mpa
574
Severe floating matter + precipitation
Nothing
500L
2.2
0.20 Mpa
574
Severe floating matter + precipitation
Nothing
800L
2.2
0.24 Mpa
574
Severe floating matter + precipitation
Nothing
1500L
1.7
0.18 Mpa
559
Severe floating matter + precipitation
Nothing
2450L
2.0
0.30 Mpa
574
Severe floating matter + precipitation
Nothing
3000L
2.0
0.26 Mpa
574
Severe floating matter + precipitation
Nothing
3800L
1.8
0.20 Mpa
574
Severe floating matter + precipitation
Nothing
Product Application

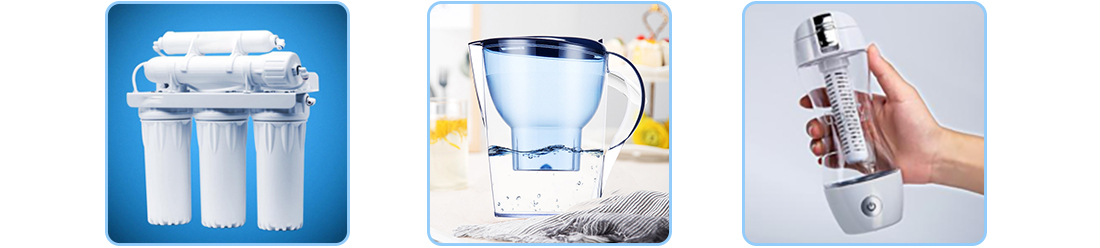

It is widely used in water purifier filters, alkaline water bottle, net kettles,dietary water bag,househould water purification for bath &cosmetic etc.
Zone Corp owns 2 roller kiln production lines for manufacturing bio ceramic balls with 16000 tons manufacturing capacity per year.
OEM package could be provided as your request.
ZONE begins with family which has been producing water filter media for almost a quarter century.
ZONE formed in 2002 and located in Zibo City, Shandong with 53800ft2 manufacturing space. The current CEO Dr Zhang was a researcher at China National Ceramic Research Institute and he obtained China National Patent Award. In 2017, we set up the 2nd production line with over 107600ft2 manufacturing space. In 2022, we started to set up 3rd production line with over 32280ft2 manufacturing space.
ZONE manufactures top-quality water filter media including alkaline water Media, hydrogen water Media, Antibacterial Water Media,mineral water Media,chlorine removal Media,Antiscaling Water Media,Fluoride Removal Media and Actived Water Media etc .Our laboratory center including R&D laboratory and QC laboratory for analysis and quality controls our production in all stages.
ZONE water filter media meet the significant standard for drinking water and we are certificated against the applicable Quality Management Systems Standard ISO9001:2015.
For over 21years, we’ve been industry expert in water treatment. ZONE R&D develop unique and customized water filter media according to different requirements. Tell us your original water and pure water requirements,We will definitely provide a optimum water treatment solutions!
