A Must-Know for Drinking Water Safety: From Fluoride Exceedance to High-Efficiency Fluoride Removal – A Comprehensive Guide to the Innovation of Water Purification Filter Media
Update time: 25-10-25 Views: 18
1. Fluoride Exceedance: An Overlooked Hidden Risk to Drinking Water Health
Fluoride is an essential trace element for the human body. However, long-term consumption of water with fluoride content exceeding 1.0mg/L (the limit specified in GB5749-2022 Sanitary Standards for Drinking Water) can lead to chronic diseases such as dental fluorosis and skeletal fluorosis. In China, the fluoride content in groundwater in provinces like Heilongjiang, Jilin, Liaoning, and Shanxi is generally above the standard, with some areas even reaching 20mg/L, directly endangering the health of over 6 million residents. Worse still, industrial wastewater discharge (e.g., coal mine water, electronic factory wastewater) further exacerbates fluoride pollution, making traditional treatment methods insufficient to meet the needs of deep Fluoride Removal.
2. The "Arms Race" of Fluoride Removal in Water Purification Filter Media
In the field of water purification, the core competitiveness of fluoride removal technology lies in the performance of filter media. Currently, mainstream fluoride removal filter media include:
1. Activated Alumina: It adsorbs fluoride ions through ion exchange, but has limitations such as a narrow pH application range (needing adjustment to 6.0-7.0) and the risk of aluminum pollution during regeneration.
2. Bone Charcoal: A natural material with low adsorption capacity, requiring frequent replacement and prone to bacterial growth after regeneration.
3. Zeolite: Low in cost but with unstable fluoride removal efficiency, only suitable for water bodies with low fluoride pollution.

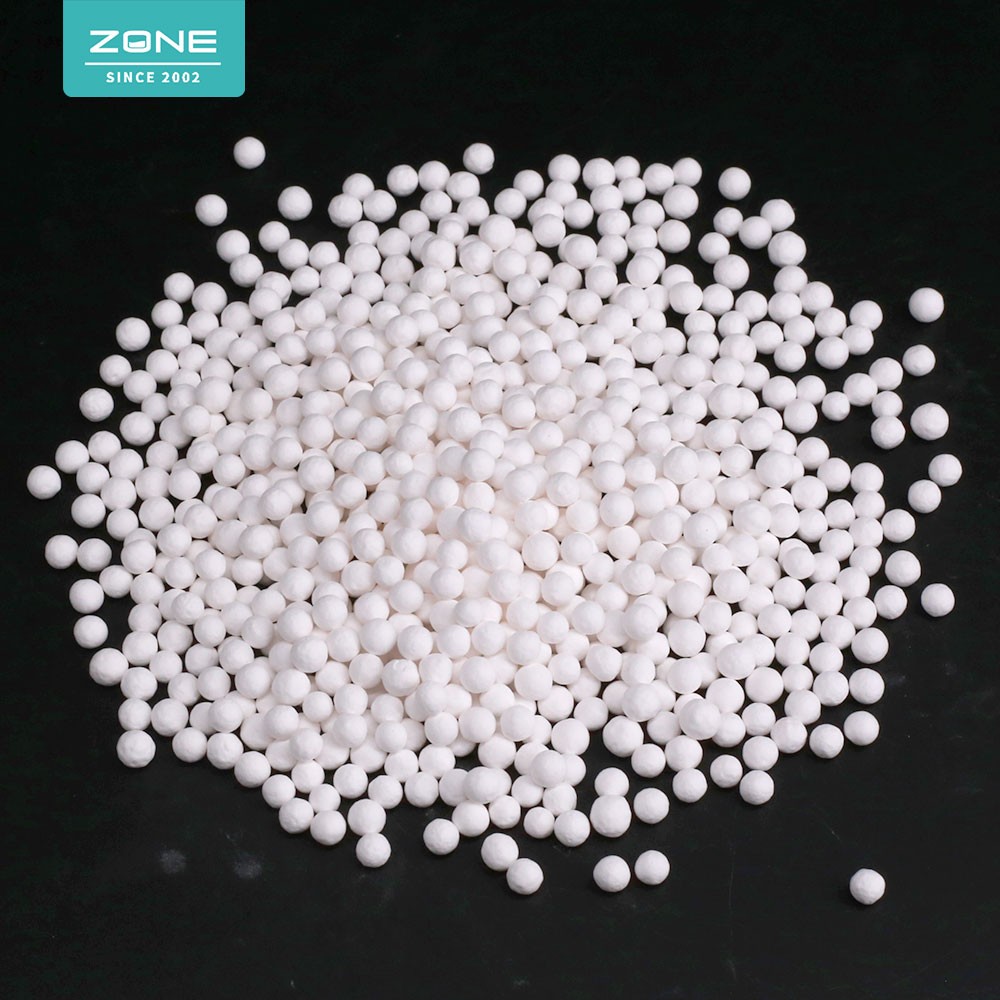

ZONE Fluoride Removal Balls stand out in this "arms race" with breakthrough Hydroxyapatite (HAP) technology. Their core advantages are as follows:
- High-Efficiency Fluoride Removal Rate: Adopting a special sintering process, the fluoride removal rate is stably over 80%, which can reduce fluoride content from 5mg/L to below 1mg/L, fully complying with national drinking water standards.
- Wide Adaptability: It maintains efficient adsorption within a pH range of 5.0-9.0, especially performing optimally in neutral to weakly alkaline water, without the need for complex pre-treatment adjustment.
- Long Regeneration Lifespan: Regenerated with 5% sodium hydroxide solution, it has a lifespan of over 500 cycles, with adsorption capacity attenuation of less than 5%, significantly reducing operation and maintenance costs.
3. Hydroxyapatite: Ushering in a New Era of Fluoride Removal Technology
The core component of ZONE Fluoride Removal Balls is Hydroxyapatite (Ca₅(PO₄)₃OH), a natural mineral material. Its fluoride removal mechanism is achieved through a dual effect:
1. Ion Exchange: Hydroxyl groups (OH⁻) on the surface of the filter media undergo a displacement reaction with fluoride ions (F⁻) in water to form fluorapatite (Ca₅(PO₄)₃F), which forms stable chemical bonds in the microstructure.
2. Chemical Adsorption: The porous structure of HAP provides a specific surface area of up to 137.2m²/g. It captures fluoride ions through electrostatic attraction and surface complexation, especially showing remarkable effects in water bodies with low fluoride pollution.

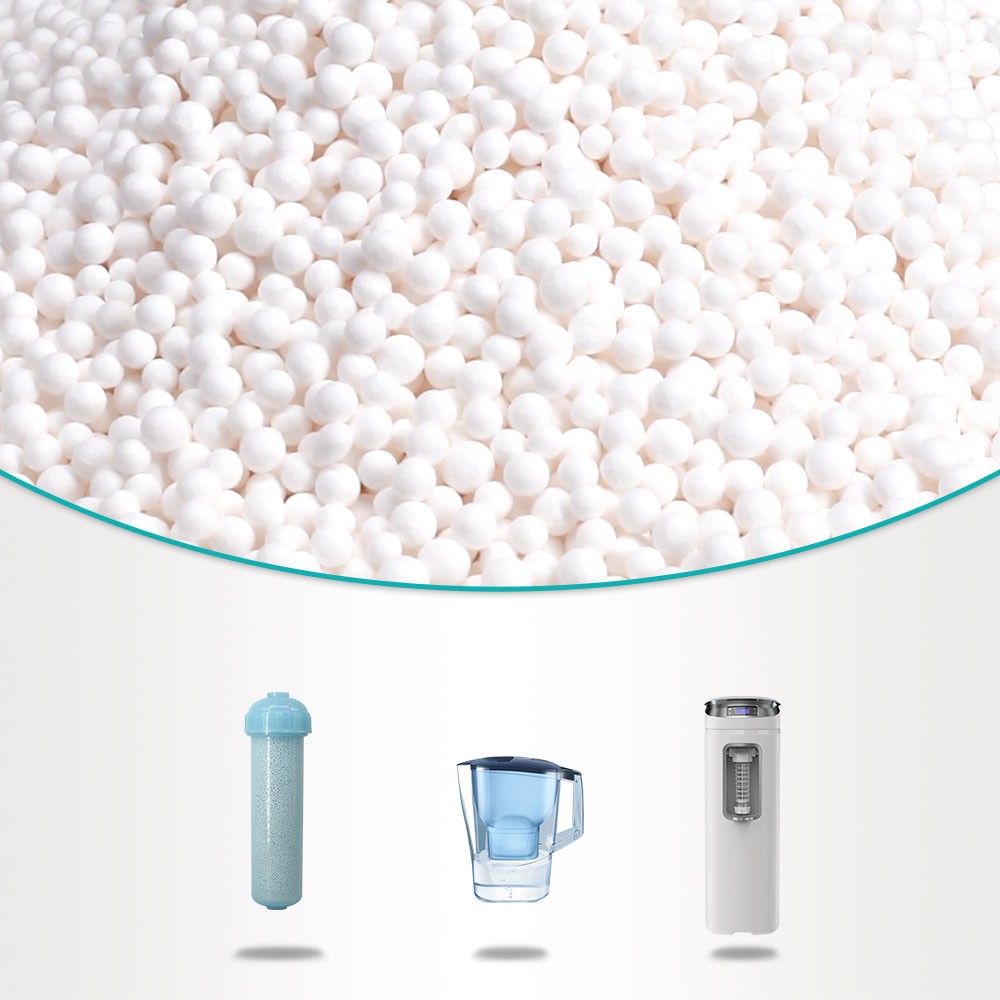

This dual mechanism enables ZONE Fluoride Removal Balls to perform excellently in various scenarios:

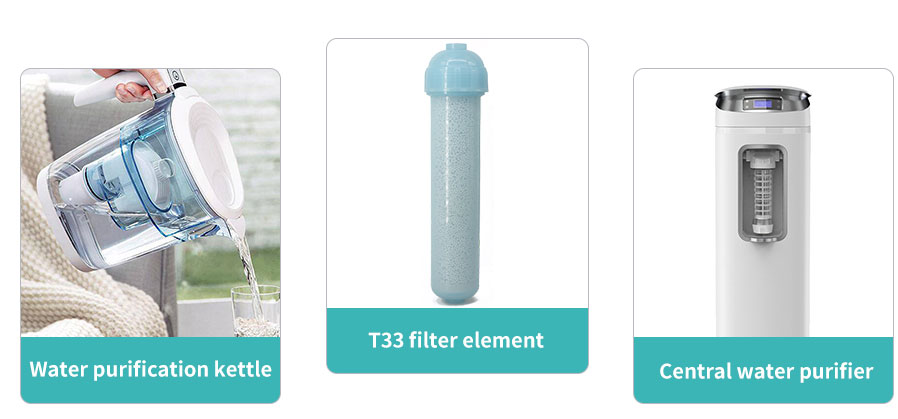

- water purifiers/Water Filter Cartridges: With a particle size design of 0.5-1.5mm, it is compatible with mainstream T33 filter cartridge structures and can directly replace traditional activated carbon to achieve efficient fluoride removal at household end-use points.
- Central Water Purification Systems: By filling filter tanks to form a filter layer, under the condition of empty bed contact time ≥5 minutes, it can treat municipal water supply with a flow rate of 20m³/h, meeting the needs of villas and small-to-medium commercial premises.
- Industrial Applications: Its resistance to suspended solids impact makes it outstanding in coal mine water and electronic factory wastewater treatment. The parallel process of double tanks enables continuous operation.
4. From Laboratory to Real-World Scenarios: The Value Verification of ZONE Fluoride Removal Balls
In the renovation project of a township water plant in Shandong Province, the original water fluoride content reached 3.2mg/L. After replacing the original activated alumina filter media with ZONE Fluoride Removal Balls, the fluoride concentration in the effluent was stably maintained below 0.8mg/L. At the same time, the equipment footprint was reduced by 30%, and no additional aeration tank was needed. In a rural drinking water project in Henan Province, an integrated stainless steel filter tank integrated with fluoride removal balls was used, with a daily treatment capacity of 2 tons per tank, meeting the safe drinking water needs of 100 households, and the treatment cost per ton of water was less than RMB 0.3.
5. The "Golden Rules" for Selecting Fluoride Removal Filter Media
Faced with a wide range of fluoride removal products on the market, professionals recommend evaluating from the following dimensions:
1. Technical Parameters: Focus on core indicators such as adsorption capacity (mg F⁻/g), pH application range, and regeneration lifespan, and avoid being misled by "conceptual" promotions.

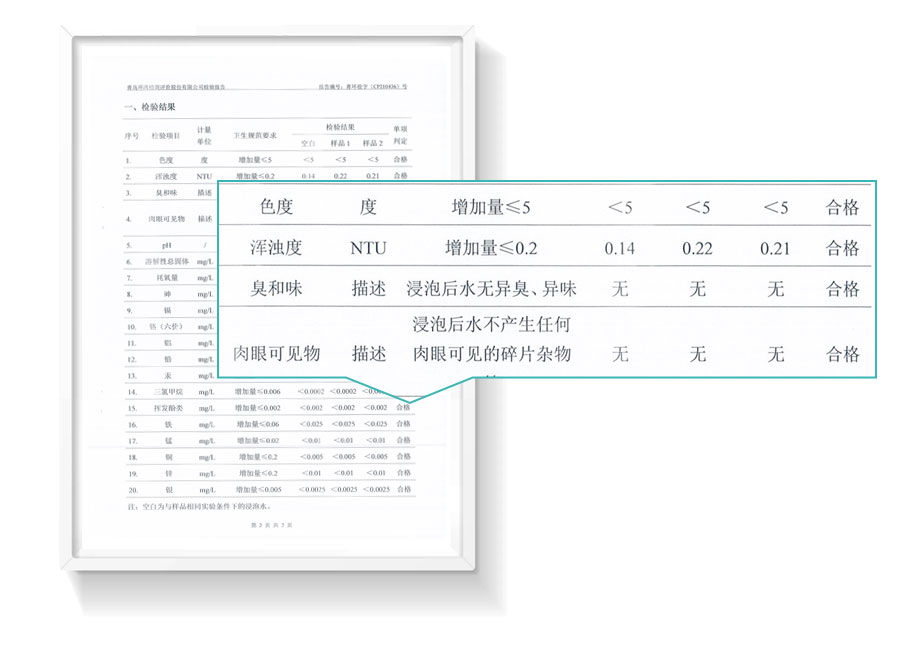

2. Safety Certifications: Ensure the filter media has passed international certifications such as NSF/ANSI 61, with no risk of heavy metal leaching – this is particularly crucial in household drinking water scenarios.
3. Compatibility: Select the appropriate particle size and filling method based on the treated water volume (from 0.1t/d to 5000t/d) to avoid efficiency degradation caused by mismatching between equipment and filter media.
6. Trend of the Water Purification Industry: From Single Fluoride Removal to Intelligent Purification
The global market size of water treatment filter media is expected to exceed RMB 120 billion in 2025, with China contributing over 40% of the share. Driven by policies, fluoride removal technology is evolving in the following directions:
- Nanocomposite Technology: Enhancing the adsorption capacity of HAP through technologies such as Al³⁺ modification. For example, the maximum fluoride removal effect of Al₁₃-HAP can reach 5.03mg/L, an increase of 60% compared with traditional HAP.
- IoT Integration: Intelligent filter media monitoring systems can track adsorption saturation in real-time and remind users of regeneration or replacement via mobile APP, reducing operation and maintenance costs by 40%.
- Environmental Sustainability: The penetration rate of biodegradable filter media in the EU market has reached 18%. ZONE Fluoride Removal Balls use natural mineral raw materials, and the regenerated waste liquid can be treated through neutralization to achieve environmentally friendly discharge.
Drinking water safety is the foundation of people’s livelihood. With its efficient, stable, and environmentally friendly characteristics, ZONE Fluoride Removal Balls provide a practical solution for areas with excessive fluoride. Whether in household end-use water purification or industrial wastewater treatment, this product demonstrates the innovative power of hydroxyapatite technology. Choosing ZONE is not only choosing a type of filter media, but also choosing a dual
