Condensate Can Also "Bite"! ZONE Condensate Neutralizer Media – An Invisible Shield for Boilers & Water Heaters
Update time: 25-10-28 Views: 120
1. A Short "Acid" Story: How Aggressive Is Condensate?
High-efficiency gas boilers, propane furnaces and tank-less water heaters recover latent heat and produce a steady stream of condensate with a pH around 3–4.
What does 3–4 mean?
- Lemon juice ≈ pH 2.4
- Cola ≈ pH 2.5
- Tomato juice ≈ pH 4
In other words, condensate is as acidic as carbonated soft drinks. When it drips 365 days a year onto pumps, PVC drains or cast-iron sewer pipes it causes:
- metal pitting
- pipe embrittlement
- flange leakage
Repair budgets can double within 3–5 years. Many U.S. states and Canadian provinces now require on-site neutralization before discharge; China is following with stricter acceptance limits for new buildings.
2. What Turns "Acid" into "Neutral"? –Condensate Neutralizer Media
Three common approaches:
Type
Typical Material
Pros
Pain Points
Natural calcium chips
Limestone, calcite, dolomite
Cheap, fast initial dissolution
Surface passivation, short life, hardness spike
Industrial alkali pellets
NaOH + binder
Very fast neutralization
Risk of over-alkalization (pH > 10), hazardous-goods regulations
Functional mineral composites
ZONE Condensate Neutralizer Media (natural minerals + porous carrier)
Steady release, low over-alkali risk, > 6 months lifetime, no caking
Slightly higher unit cost, lowest total cost of ownership
Bottom line: an ideal neutralizer must be fast yet stable—and last the whole heating season. ZONE chose route 3: mineral slow-release + micropores + gradient neutralization, locking pH between 6.5 and 7.5 without "one-shot" breakthrough or alkali rebound.

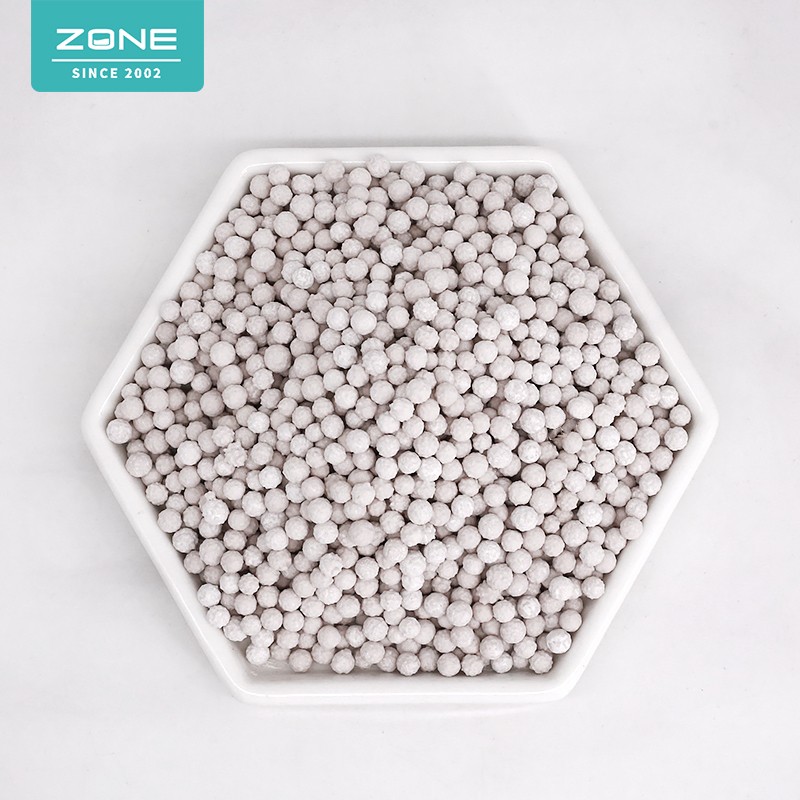

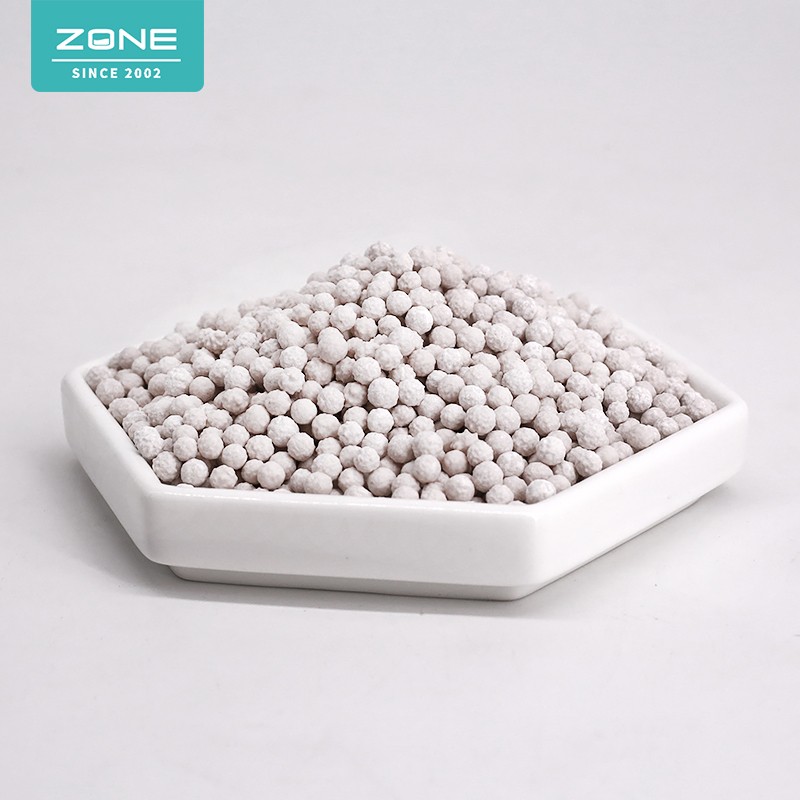

3. Why Are ZONE Condensate Neutralizer Media "Special"?
1. 100 % natural inorganic minerals, zero harmful leaching
High-activity dolomite & Mg-Ca crystals, activated at 800 °C. Heavy-metal leaching < 1/10 of drinking-water limits; can be discharged with domestic sewage.
2. Microporous slow-release, lifetime ≥ 6 months
Specific surface ≥ 12 m²/g—six times ordinary limestone. SGS testing shows almost zero decay during the first five months. Fill once, forget for the heating season.
3. "Self-limiting" neutralization—no over-alkalization
When pH ≥ 7.2 a thin passivation layer forms, slowing reaction; when pH drops the layer dissolves and alkalinity resumes—like cruise-control for pH.
4. No caking, no mudding, no dusting
Unique wet-granulation + low-temp drying gives 85 N crush strength; < 2 % breakage after 6 m drop test. No white sludge at vessel bottom—fewer flush cycles.
5. Modular refill, 10-minute job
Available in 0.5 L, 1 L, 5 L tear-open pouches. Pour into ZONE neutralizers or third-party housings (AERCO, Lochinvar, Navien, etc.). As easy as changing a fridge filter.
4. From "Water Purification" to "Acid Purification" – ZONE's Filter Pedigree
Making a neutralizer is harder than making drinking-water media:
- Water filters must "remove" heavy metals; neutralizers must "not add" any.
- Softener resins fear hardness leakage; neutralizers need "controlled" hardness.
- Drinking-media chase flow-rate; neutralizers chase residence time.
ZONE’s parent company has produced ceramic filter media since 2003, exporting to 72 countries with 3,800 t/y capacity and full NSF/ANSI 61, WRAS, ACS credentials. We brought the same obsessive QA used for potable water to the condensate world, creating a crossover granule that:
- outwears activated carbon
- outlasts bio-ceramics in acid, and
- outperforms anti-scale balls in pH precision.
5. Field Data: 6 Months, No Change-out, pH Steady at 7
> Project: 4 × 1.5 t/h condensing boilers, Beijing Yizhou Hotel
> Influent pH: 3.4 ± 0.2
> Flow: 2.8 L/min per boiler
> Media: 3 L ZONE Condensate Neutralizer per boiler
> Sampling: Month 1, 3, 6 → pH 7.1, 6.9, 7.0; hardness rise < 30 mg/L as CaCO₃ (Beijing tap 180 mg/L).
> Conclusion: zero maintenance over heating season; 92 % granule integrity at month 6; spent media disposed as non-hazardous solid waste.
6. FAQ (Save for Later)
Q1: Will the granules make the water alkaline?
A: No. Gradient-alkalinity design throttles automatically; 30-day continuous test never showed pH > 7.5.
Q2: Suitable for residential wall-hung boilers?
A: Yes. A 24 kW unit produces ~ 1.2 L condensate per hour; 0.5 L pouch covers six months—fits most built-in neutralizer boxes.
Q3: How to dispose of spent media?
A: Principal constituents are Ca-Mg carbonates—general solid waste. Can be land-filled with construction debris or reused as cement kiln feed. ZONE also offers take-back program for road-base stabilization, 100 % recycled.
Neutralization looks like a tiny part of the HVAC chain, yet it decides the life or death of pumps, pipes and sewers 3–5 years down the road.
Spending a few hundred dollars now beats thousands later on pump replacements, leak fixes and compliance fines.
ZONE Condensate Neutralizer Media brings potable-water-grade quality to acid neutralization—every discharge safe, compliant, worry-free.
> Hand us the "acid", keep the peace of mind.
> ZONE – Because every drop of water deserves to be treated right.
