From “Scale” to “Pure Water”: The Front-Line Guardian of Reverse Osmosis Systems – ZONE Anti-Scale Particles

---

Update time: 25-09-01    Views: 139

1. Why RO Systems Need a “Bodyguard” Up-Front

RO membranes have pores one-millionth the width of a human hair and can, in theory, reject > 99 % of dissolved salts, heavy metals and bacteria. In practice, however, calcium (Ca²⁺) and magnesium (Mg²⁺) in tap water become supersaturated and crystallize as calcium carbonate, calcium sulfate, etc. These crystals form a “scale” layer that:

• Cuts permeate flow by 30 %–50 %;

• Increases pump pressure and energy use;

• Shortens membrane life from 3 years to < 1 year.



2. Pain Points of Traditional Anti-Scale Methods

• Chemical inhibitors: continuous dosing, tedious operation, risk of phosphate discharge;

• Softening resin: frequent regeneration, high salt consumption, large wastewater ratio;

• Electromagnetic/magnetic devices: performance fluctuates with water quality, ineffective against CaSO₄ or BaSO₄.

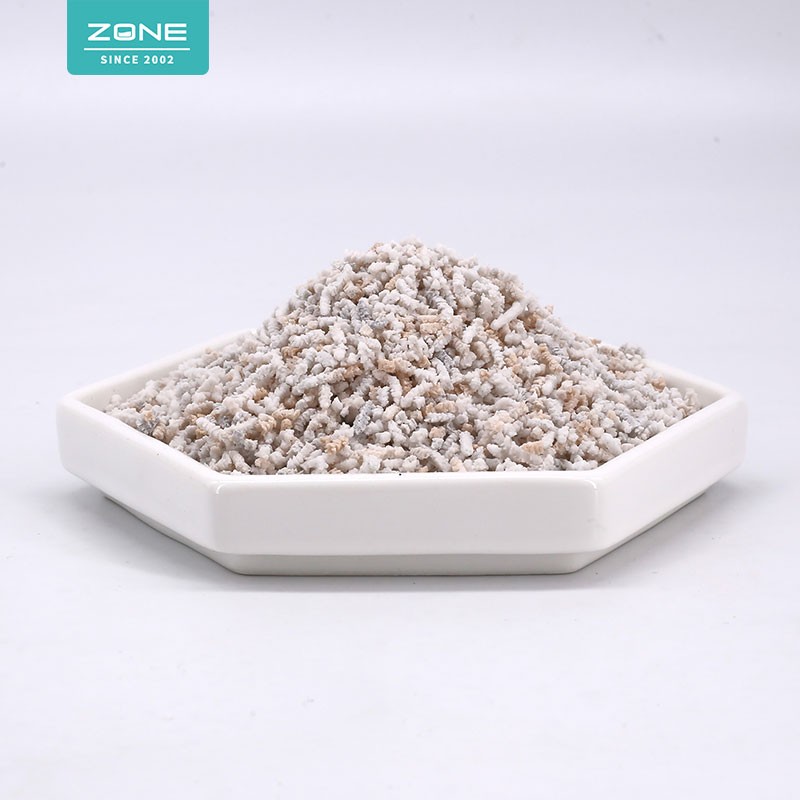

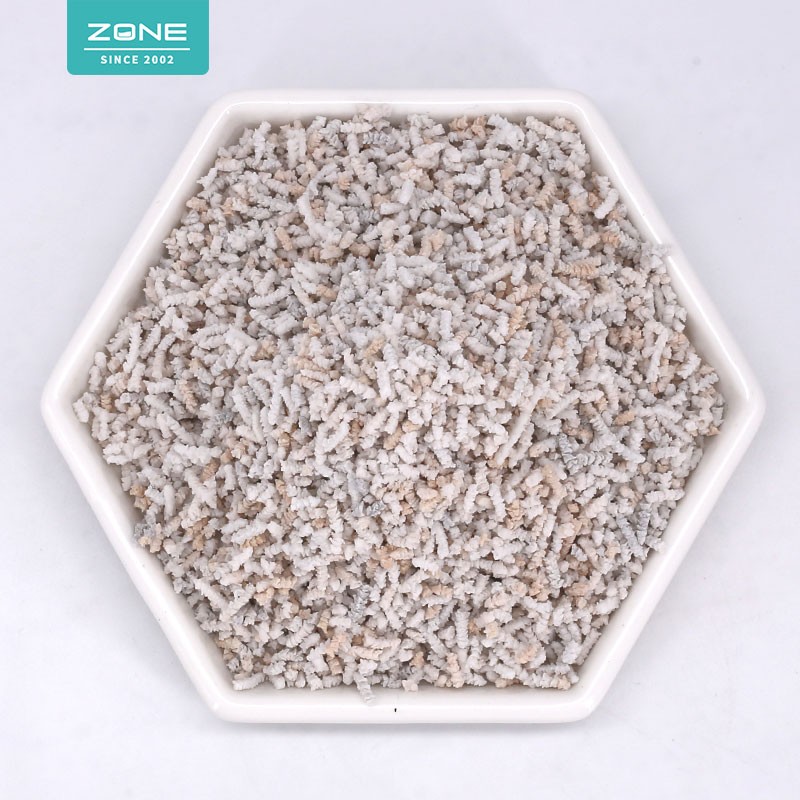

3. ZONE Anti-Scale Particles: A 3rd-Generation Physical-Chemical Hybrid Solution

3.1 Mechanism of Action

Using a patented bio-ceramic matrix, the particles embed food-grade polycarboxylic–zinc complexes. When hard water passes through:

• Chelation: active sites instantly lock Ca²⁺/Mg²⁺, preventing CO₃²⁻ binding;

• Dispersion: nano-sized soluble complexes form and exit with the concentrate;

• Trace release: Zn²⁺ forms a < 10 nm protective film on the membrane, inhibiting crystal nucleation.



3.2 Key Performance

• Dosage: only 20–25 g protects one standard RO cartridge;

• Treatable volume: 20–40 t (depends on feed hardness);

• pH range: 6.5–8.5; temperature: 5–45 °C;

• Food-grade raw materials, NSF/ANSI 42 & 61 certified, phosphate-free, non-leaching.



3.3 Third-Party Test Data (excerpt)

Feed Hardness (ppm CaCO₃)	Without Anti-Scale	With ZONE Anti-Scale	Flux Decline
300	35 % (30 days	< 5 % (30 days)	↓ 85 %

4. How to Install in Your System

• 10”/20” transparent filter housings – drop-in replacement after PP sediment;

• Quick-connect cartridges – integrate with carbon or PP in one unit, fewer joints;

• Commercial/Industrial – pack in FRP or SS vessels and connect to multi-port valves.



5. Installation & Maintenance Tips

• Flush for 30 s on first use to remove surface fines;

• Replace every 6 months or when rated volume is reached;

• Pair with ZONE coconut-shell sintered carbon and bacteriostatic kdf for chlorine & heavy-metal reduction—triple protection for your RO membrane.



6. About ZONE & Sustainable water treatment

For 18 years, ZONE has focused on bio-ceramic filter media. Our production facility is ISO 9001 and BSCI certified. All raw materials are natural minerals or food-grade polymers and 100 % recyclable, contributing to a lower carbon footprint.
