Description

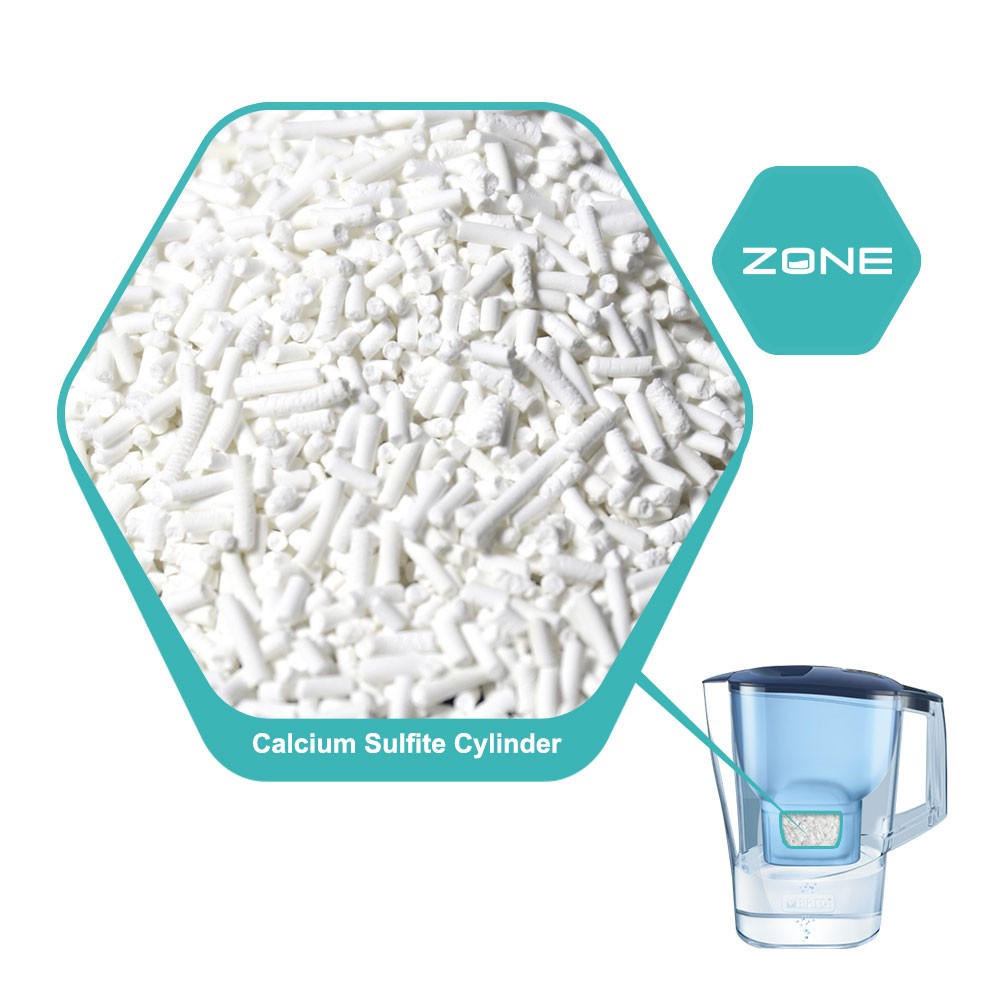

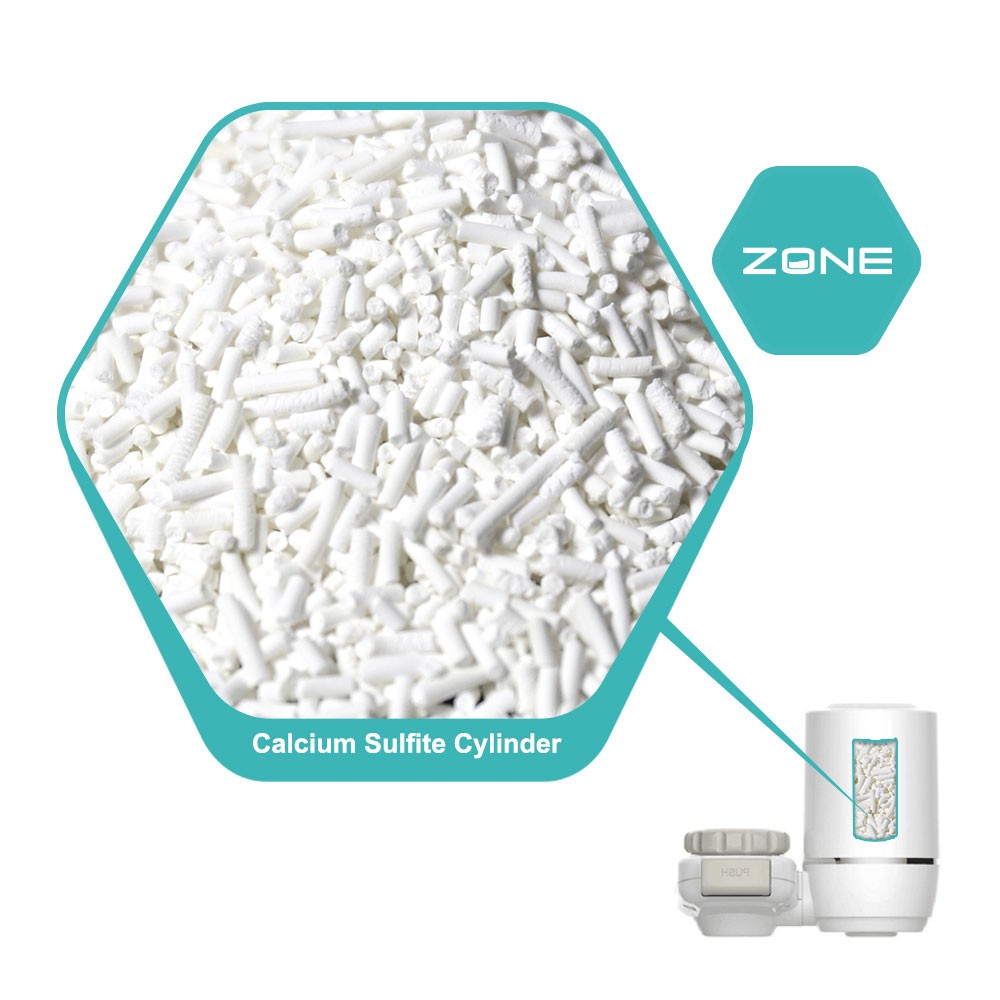

Aiming at create highest efficiency of removing chlorine,Zone Corp reserach and developed an unique product Calcium Sulfite Remove Chlorine Cylinder.
Calcium Sulfite Cylinder adopt our latest unique technology,made of Food grade Calcium Sulfite.
The content of Calcium Sulfite is more than 90% with much larger surface area than Balls.
Calcium Sulfite Cylinder has high effciency of removing 100% residual chlorine in just
0.1 seconds;10g remove chlorine cylinder treats up to 1200Liter tap water.
It can be safely used under the condition of wide PH value and 0-100 degree Celsius temperature
and widely used in shower filter,water purifier ,water heaters,swimming pool,bath club,
chlorine removing equipment etc.
Product Features
*High Effciency remove 100% residual chlorine in 0. 1seconds.
*Remove bad smell,bad taste impurities and organic matter.
*High hardness, non dust ,high performance in high water pressure.
*Stability up to 100°C，safely used under the condition of wide PH value.
|
Item |
Standard |
|
Product Name |
Calcium Sulfite Remove Chlorine Cylinder |
|
CaSO32H2O Content(%) |
≥90% |
|
Specification |
Dia 1.5mm or customized |
|
Buik Density(g/cm3) |
1.2-1.4 |
|
Specific surface area(cm2/g) |
>0.6*104 |
|
Compressive Strength（N） |
≥45 |
|
Porpsity(%) |
30 |
|
Item |
Standard |
|

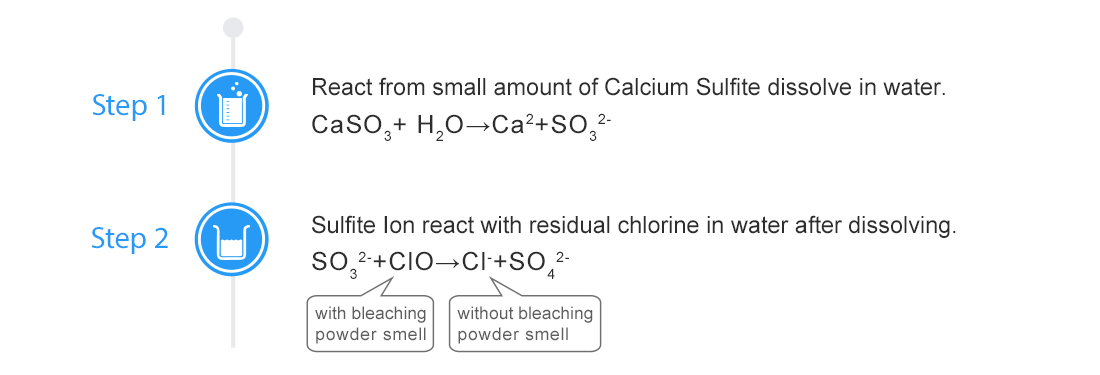

Principle |
CaSO3+2HCIO=CaSO4+CaClz+H20 |
| Residual Chlorine Concentration |
≤2PPM |
|
Capacity |
10g treat 1000L tap water (include free chlorine) |
|
Dechlorination Rate |
100% |
|
Stability under condition of PH value |
6.5-8.5 |
|
Usage Temperature |
0-100C |
chlorine removal Test
Test Conditions: Calcium Sulfite Cylinder:20g; Water Flow Rate:4L/min;
Residual Chlorine Concentration:1.0ppm
|
Water Flow (L) |
Residual Chlorine Concentration(ppm) |
Dechlorination Rate (%) |
| 0 | 1.00 | / |
| 100 | 0.00 | 100 |
| 400 | 0.00 | 100 |
| 800 | 0.00 | 100 |
| 1200 | 0.00 | 100 |
| 1600 | 0.01 | 99 |
| 2000 | 0.02 | 98 |
| 2500 | 0.03 | 97 |
|
Calcium Sulfite Cylinder(g) |
Residual Chlorine Concentration(ppm) |
Dechlorination Rate (%) |
| 15 | 0.00 | 100% |
| 13 | 0.00 | 100% |
| 10 | 0.00 | 100% |
| 8 | 0.01 | 99% |
| 5 | 0.02 | 98% |
Product Application

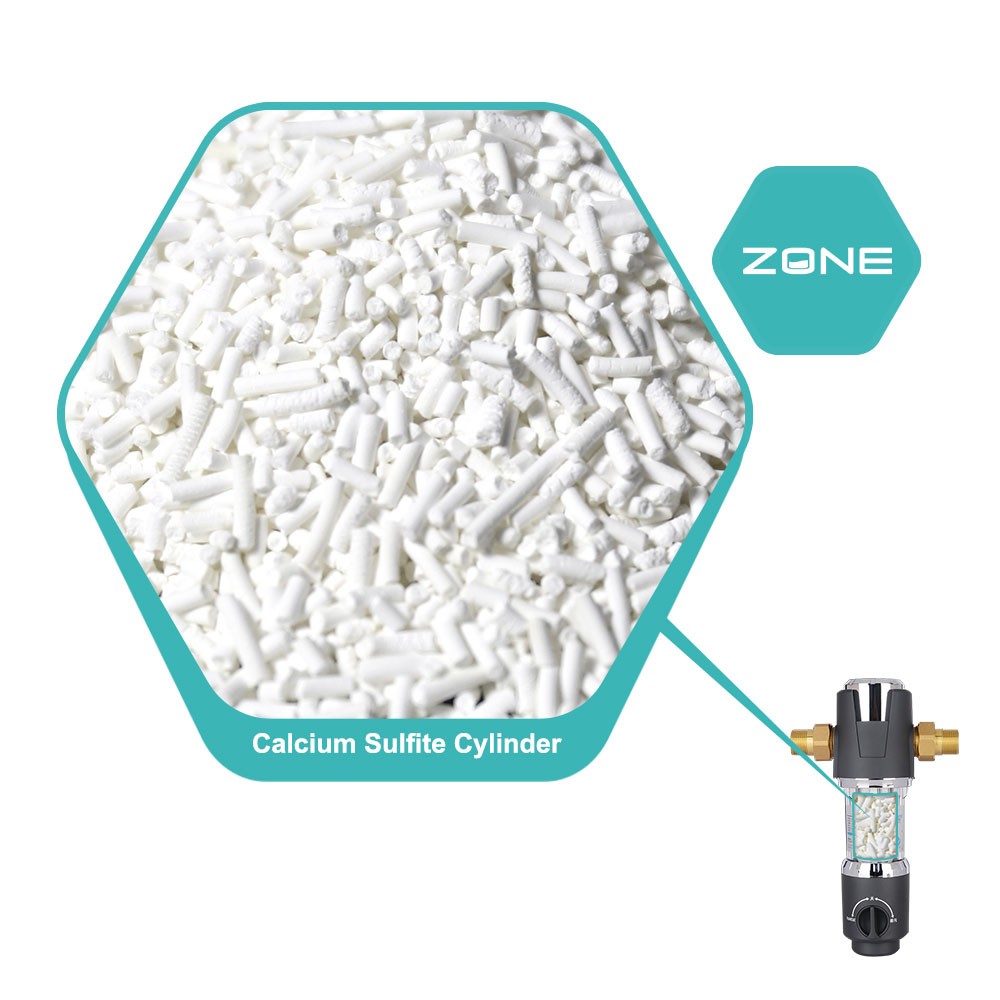

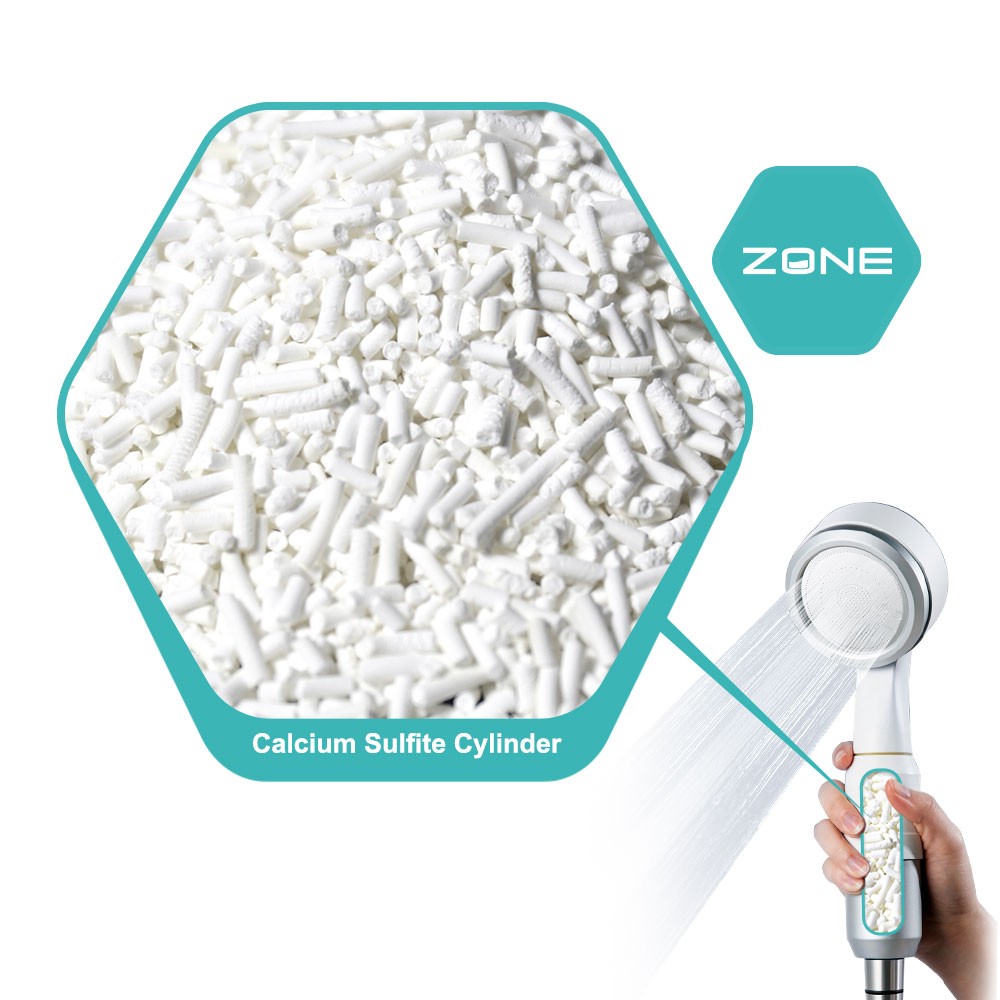

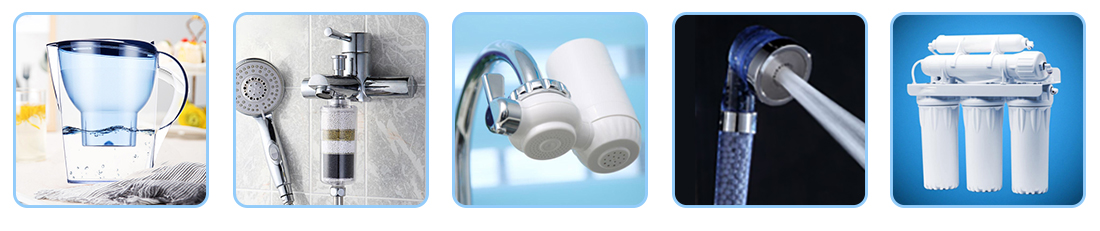

Calcium Sulfite Cylinder is widely used in shower filter,water purifier,water heaters,swimming pool,bath club, chlorine removing equipment etc.

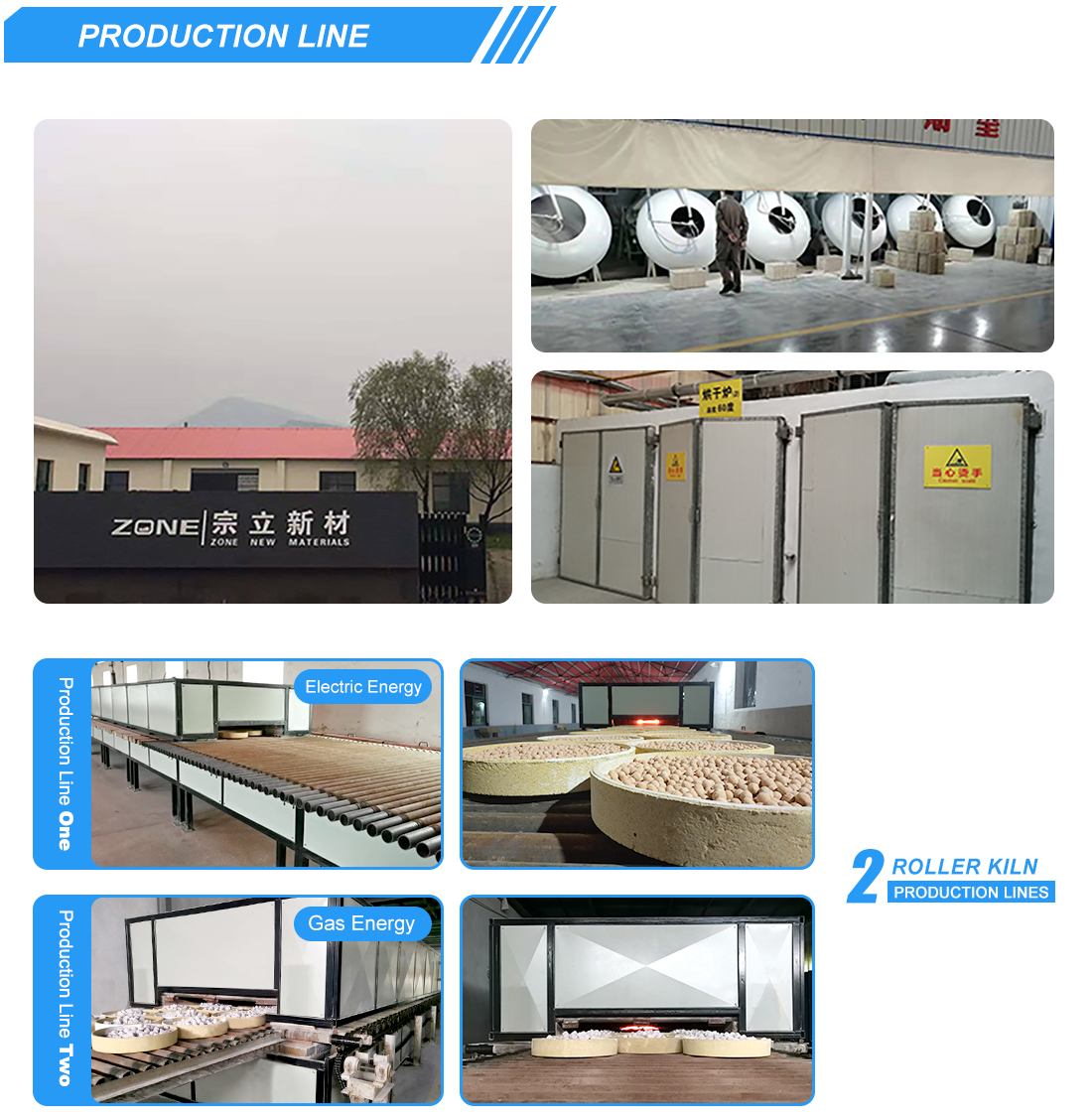

Zone Corp owns 2 roller kin production lines for manufacturing bio ceramic balls with 16000 tons manufacturing capacity per year.
ZONE begins with family which has been producing water filter media for almost a quarter century.
ZONE formed in 2002 and located in Zibo City, Shandong with 53800ft2 manufacturing space. The current CEO Dr Zhang was a researcher at China National Ceramic Research Institute and he obtained China National Patent Award. In 2017, we set up the 2nd production line with over 107600ft2 manufacturing space. In 2022, we started to set up 3rd production line with over 32280ft2 manufacturing space.

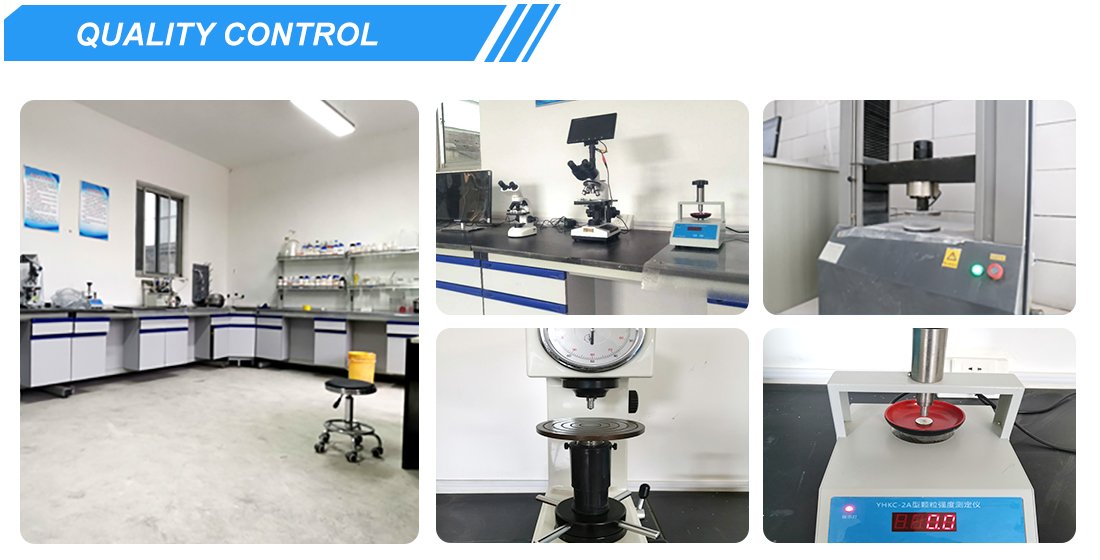

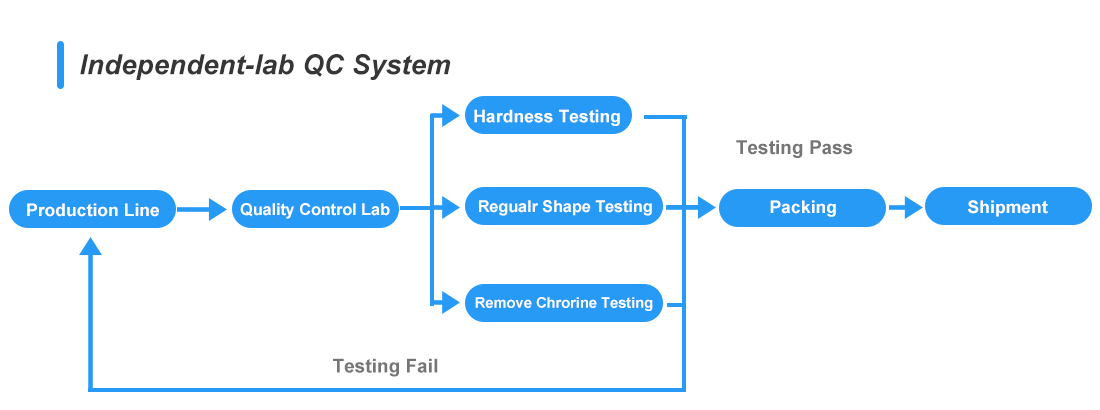

ZONE manufactures top-quality water filter media including alkaline water Media, hydrogen water Media, Antibacterial Water Media,mineral water Media,Chlorine Removal Media,Antiscaling Water Media,Fluoride Removal Media and Actived Water Media etc .Our laboratory center including R&D laboratory and QC laboratory for analysis and quality controls our production in all stages.

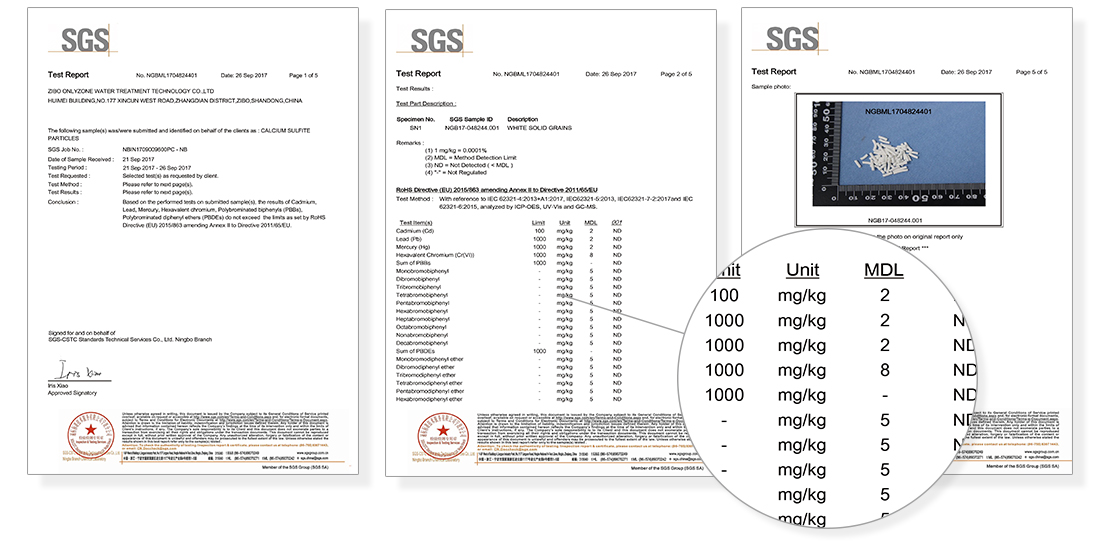

ZONE water filter media meet the significant standard for drinking water and we are certificated against the applicable Quality Management Systems Standard ISO9001:2015.
For over 21years, we’ve been industry expert in water treatment. ZONE R&D develop unique and customized water filter media according to different requirements. Tell us your original water and pure water requirements,We will definitely provide a optimum water treatment solutions!
