Product Description

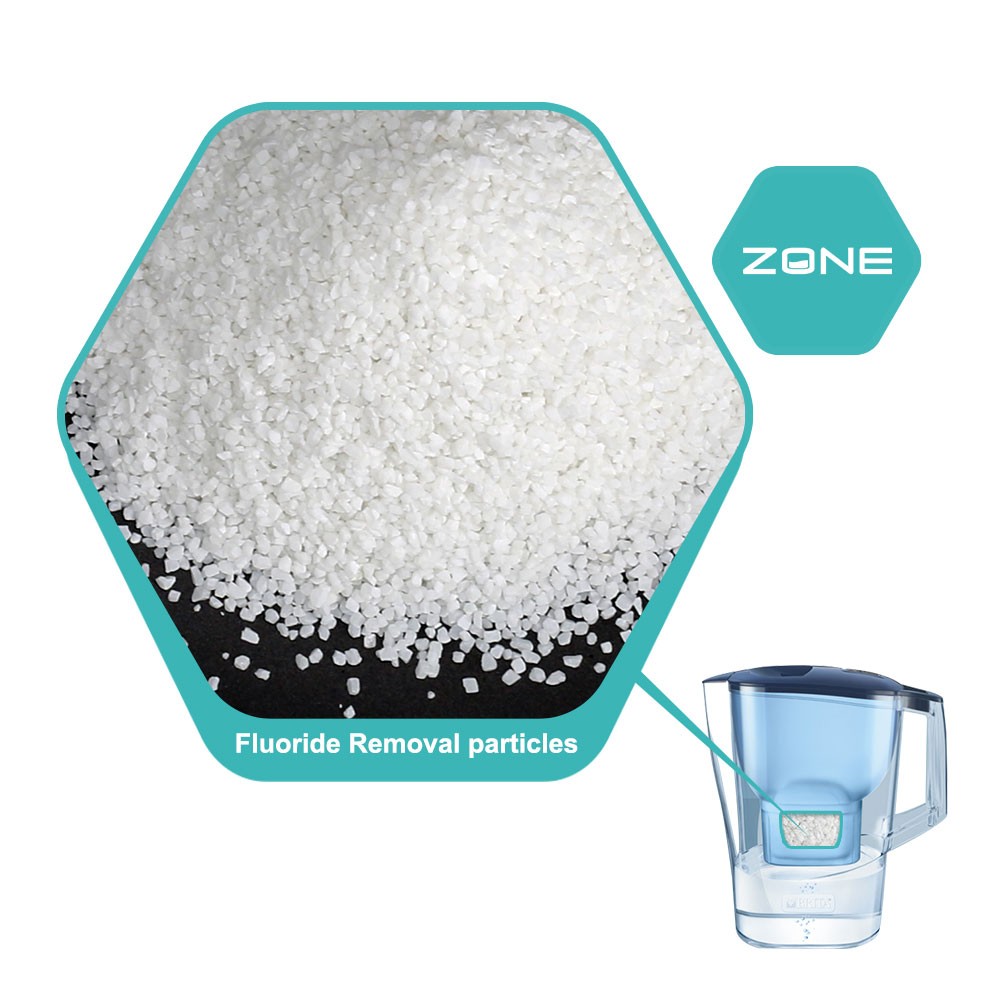

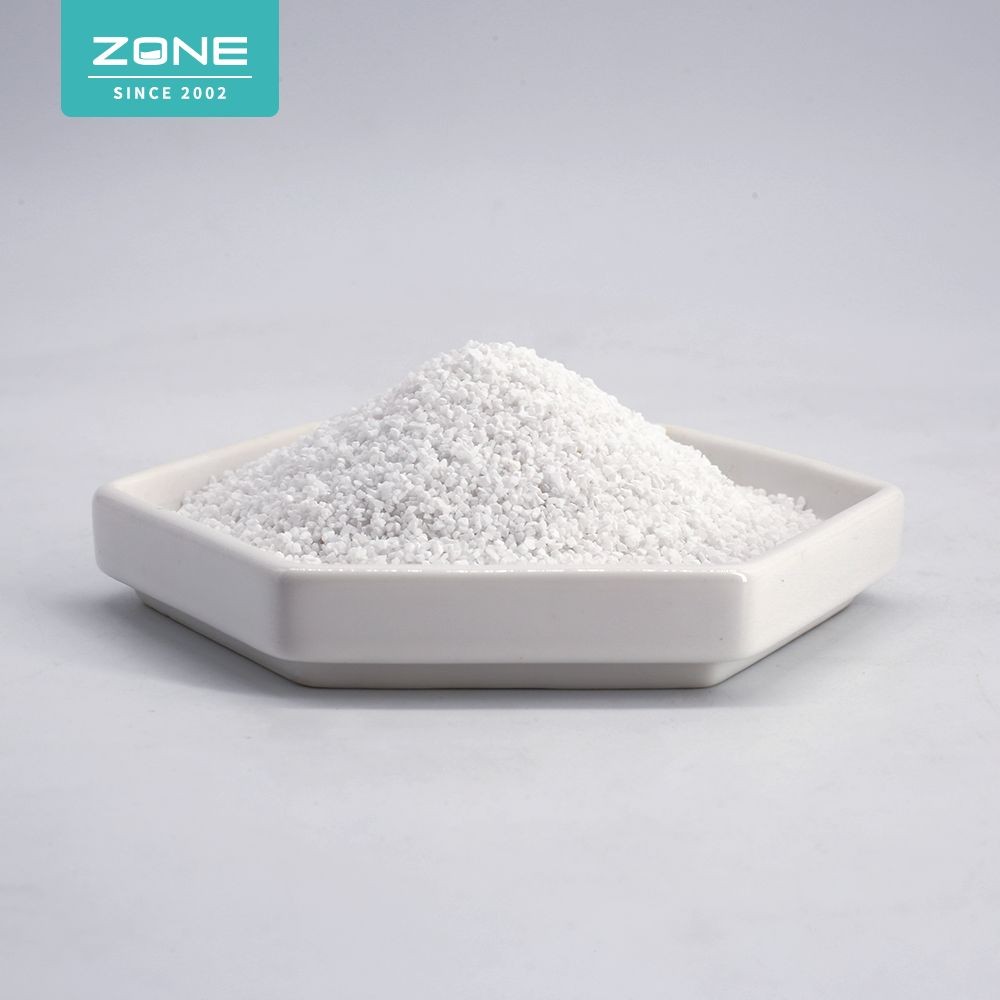

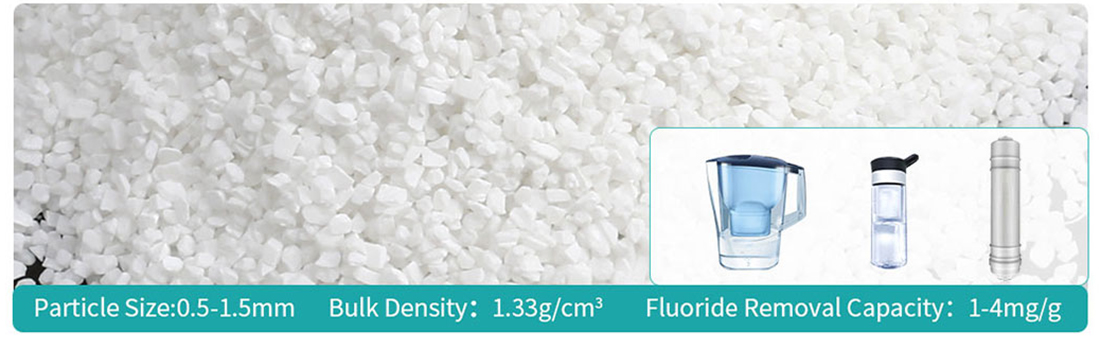

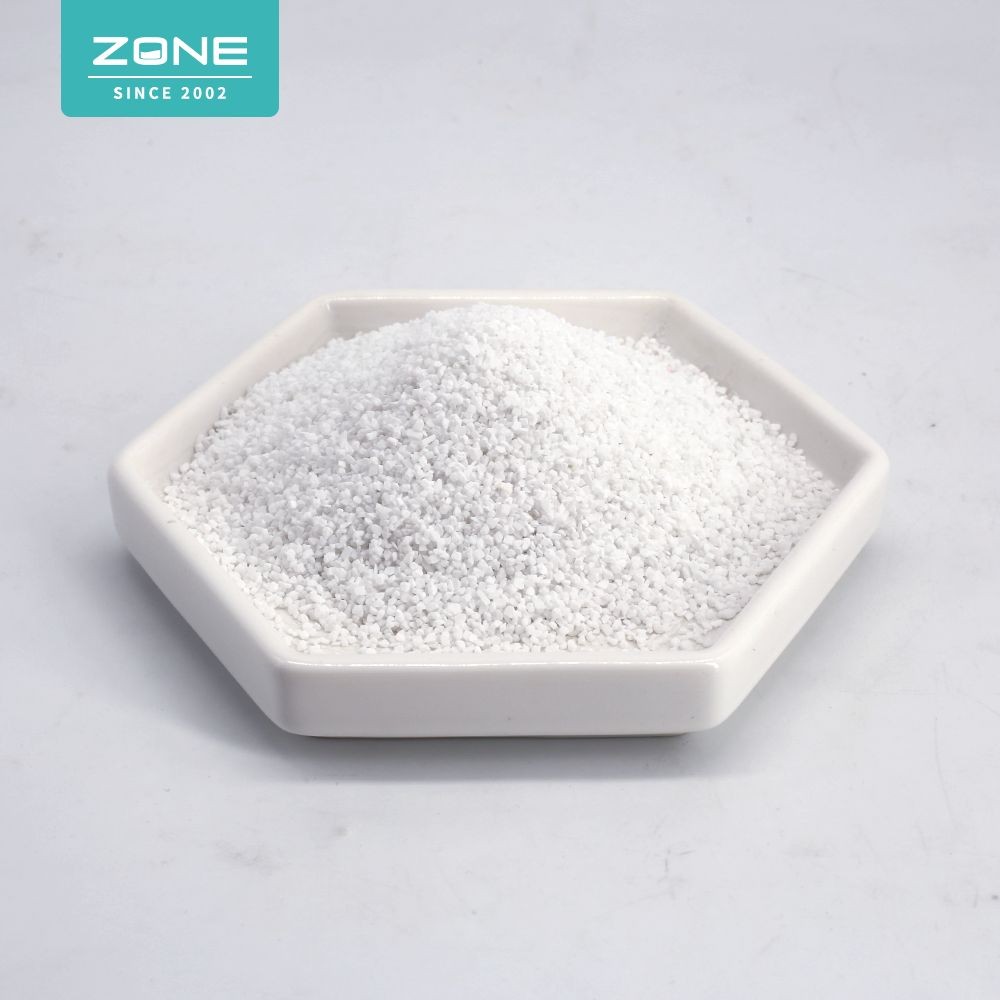

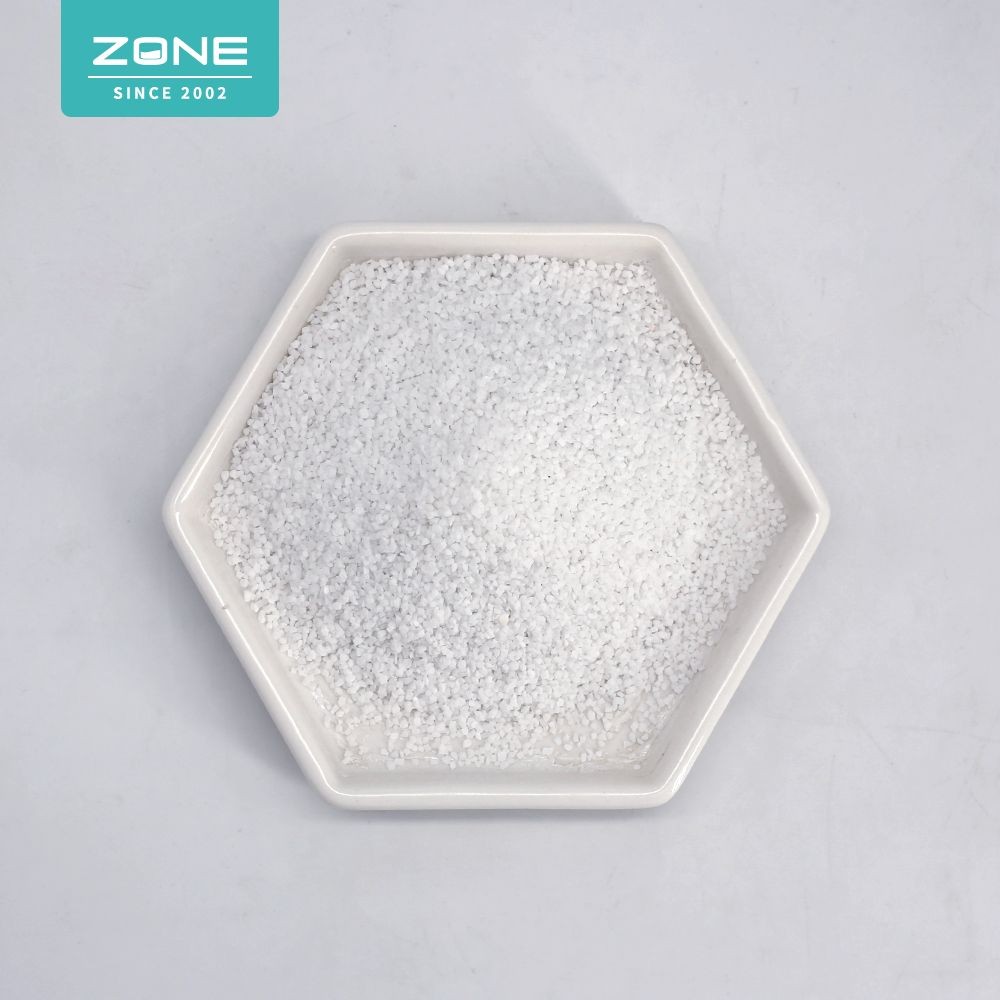

Fluorine removal particles are a new type of mineral composite materialwhich makes the fluoride in the water.A double reaction occurs when thematerial is used to ensure an efficient defluorination effect. The porestructure inside and outside the material allows fluoride toabsorb.Attached to the surface of the filter material, the first adsorptionreaction occurs; at the same time, the fluoride on the surface undergoeson exchange with the OH- of the material, resulting in the secondexchange reaction, and the purpose of efficient fluorine removal isachieved through a double-effect physical and chemical reaction.
Performance Testing
Test conditions: Put 300g of fluorine-removing particles in a clean watelfilter element, addstandard fluoride to pass through the water, and theconcentration ofoxides (5+0.2mg/L) Flow rate 013L/min. Record thechange offluoride concentration.
|
Water volume |
TestI tems |
Sample Serial Number |
Raw Water Concentration |
Effluent Concentration |
Removal Rate |
|
5L |
fluoride |
1# |
5.0(mg/L) |
0.46(mg/L) | 90.8% |
|
5L |
fluoride |
2# |
5.0(mg/L) | 0.46(mg/L) | 90.8% |
|
50L |
fluoride |
1# |
5.0(mg/L) |
0.73(mg/L) | 85.4% |
|
50L |
fluoride |
2# |
5.0(mg/L) |
0.73(mg/L) | 85.4% |
|
100L |
fluoride |
1# |
5.2(mg/L) | 0.76(mg/L) | 85.4% |
|
100L |
fluoride |
2# |
5.2(mg/L) |
0.76(mg/L) | 85.4% |
Fluoride Removal particles have high efficiency andlong-lasting removal rate of fluoride

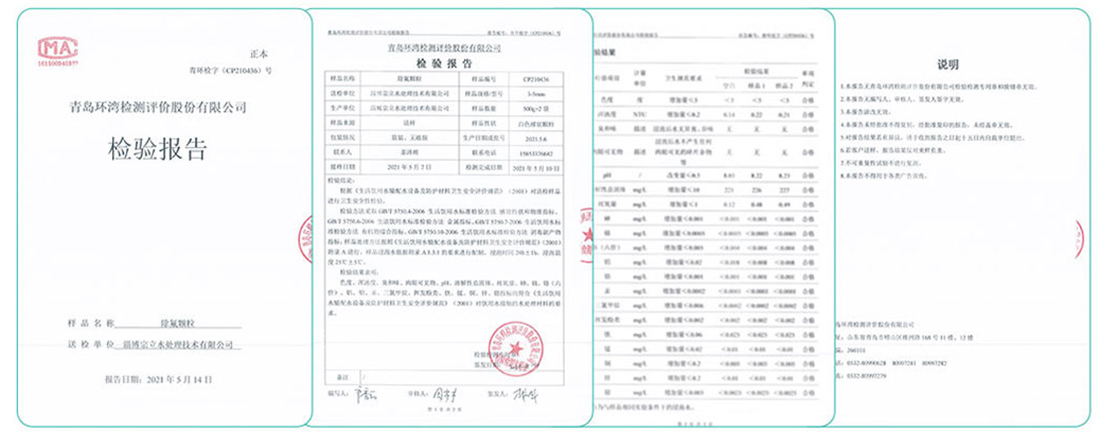

Safety Inspection Report
After the high fluoride water is in contact with the filter material, the surface of the filter material undergoes a double reaction of adsorption and ion exchange, the fluoride ion in the water is adsorbed on the filter material, and the fluoride ion exchanges with the OH-ion on the surface of the filter material, through a double-effect physicochemical reaction To achieve the purpose of defluorination.

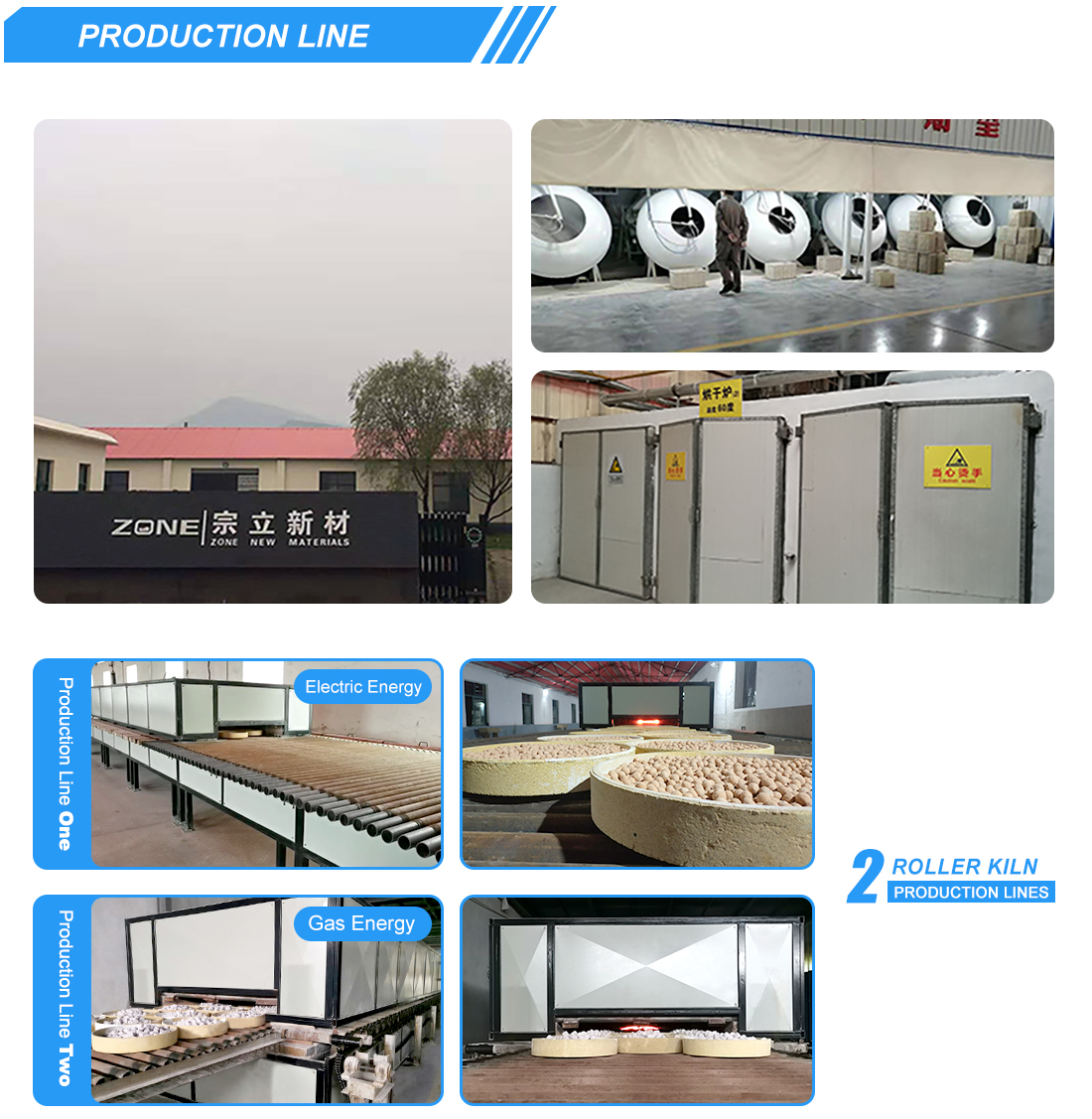

Zone Corp owns 2 roller kiln production lines for manufacturing bio ceramic balls with 16000 tons manufacturing capacity per year.
OEM package could be provided as your request.
ZONE begins with family which has been producing water filter media for almost a quarter century.
ZONE formed in 2002 and located in Zibo City, Shandong with 53800ft2 manufacturing space. The current CEO Dr Zhang was a researcher at China National Ceramic Research Institute and he obtained China National Patent Award. In 2017, we set up the 2nd production line with over 107600ft2 manufacturing space. In 2022, we started to set up 3rd production line with over 32280ft2 manufacturing space.

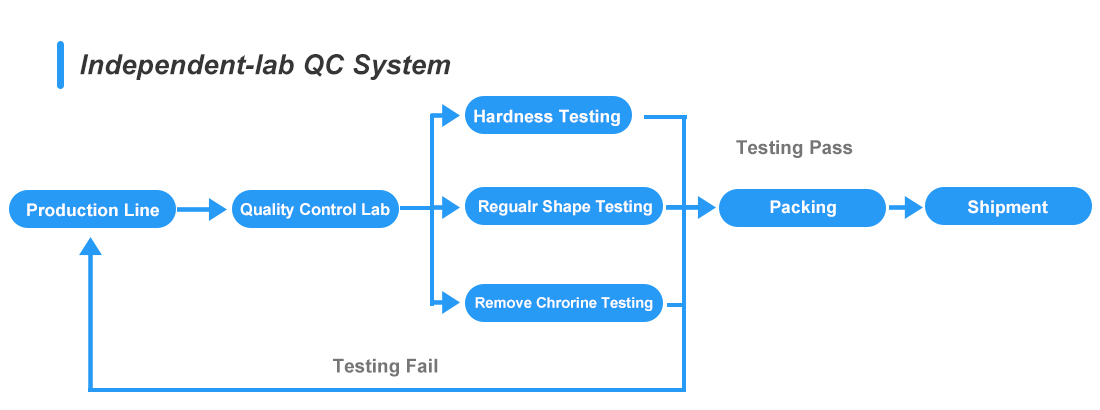

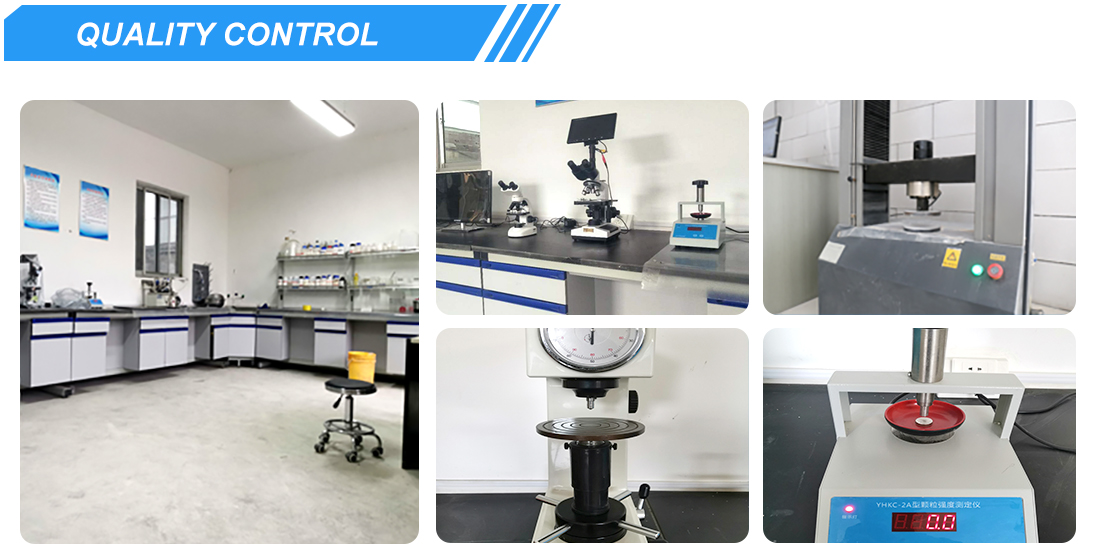

ZONE manufactures top-quality water filter media including alkaline water Media, hydrogen water Media, Antibacterial Water Media,mineral water Media,chlorine removal Media,Antiscaling Water Media,Fluoride Removal Media and Actived Water Media etc .Our laboratory center including R&D laboratory and QC laboratory for analysis and quality controls our production in all stages.
ZONE water filter media meet the significant standard for drinking water and we are certificated against the applicable Quality Management Systems Standard ISO9001:2015.
For over 21years, we’ve been industry expert in water treatment. ZONE R&D develop unique and customized water filter media according to different requirements. Tell us your original water and pure water requirements,We will definitely provide a optimum water treatment solutions!
